Okay, "DIP Factory" is a term in the electronics manufacturing field. Here is a detailed explanation for you:

Core Meaning

A DIP Factory refers to a factory or production line specialized in, or primarily using, DIP (Dual In-line Package) technology for electronic component assembly and soldering.

DIP stands for Dual In-line Package. It is a classic form of electronic component packaging, characterized by a component having two parallel rows of metal pins that can be inserted into the through-holes of a circuit board.

Detailed DIP Process

The production process of a DIP factory is significantly different from that of a modern SMT (Surface Mount Technology) factory. Its core process is Wave Soldering.

The main production steps include:

1. Component Preparation and Insertion:

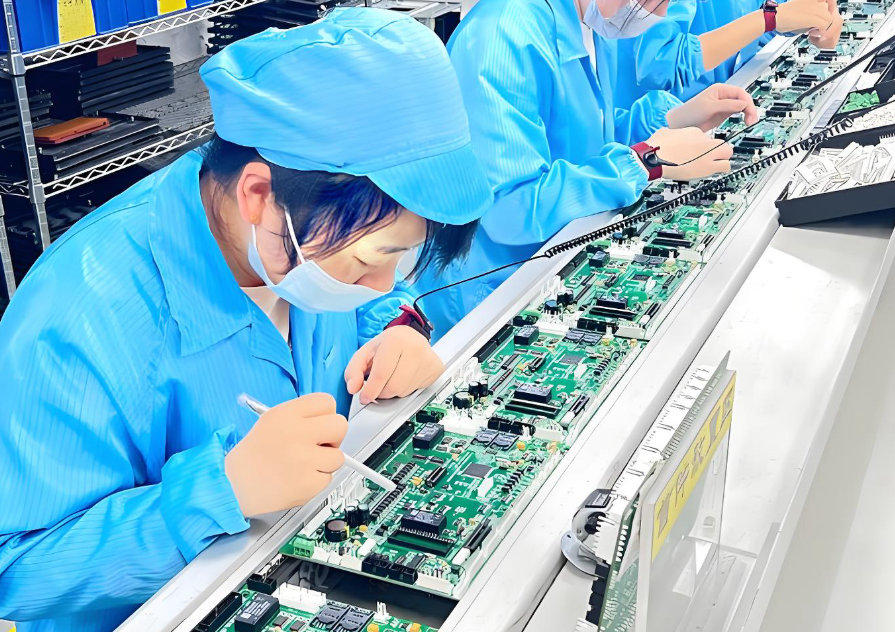

   • Manual Insertion: In early stages or for small-batch production, workers manually insert DIP components (such as IC sockets, traditional capacitors, relays, etc.) into the corresponding through-holes of the printed circuit board (PCB).

   • Automatic Insertion: For mass production, factories use Automatic Insertion Machines to insert components quickly and accurately.



2. Wave Soldering:

   • This is the core of the DIP process. The board with inserted components is placed on a conveyor belt and passed through a special machine.

   • In this machine, molten solder is pumped to form a "wave" that washes over the bottom side of the circuit board.

   • The solder simultaneously solders all the component pins in the through-holes, creating strong mechanical and electrical connections.

3. Cleaning, Inspection, and Testing:

   • After soldering, residual flux needs to be cleaned off.

   • Then, visual inspection and various electrical tests are performed to ensure product quality.

Characteristics of a DIP Factory

• Advantages:

  • High Mechanical Strength: Because the pins pass through the board and are soldered, the connection is very robust, resistant to vibration and impact, making it suitable for harsh environments.

  • Easy for Prototyping and Repair: Components can be easily hand-soldered and desoldered, making them ideal for R&D, education, and repair scenarios.

  • Cost-Effective: For some simple, low-complexity products, the DIP process may still be cost-effective.

• Disadvantages:

  • Low Production Efficiency: Compared to SMT, the insertion speed is slower, and the level of automation is lower.

  • Large Space Occupation: DIP components are large in size and have wide pin spacing, which prevents the circuit board from being miniaturized, going against the trend of smaller electronics.

  • Performance Limitations: The relatively long pins lead to higher parasitic inductance and capacitance, which can affect the performance of high-frequency circuits.

Current Status and Application Fields of DIP Factories

With the rapid development of electronic products, SMT (Surface Mount Technology) has become the absolute mainstream because it enables smaller, faster, and more automated production.

Therefore, pure "DIP Factories" are now relatively rare. A more common scenario is:

• Mixed Production Lines: Modern electronics factories typically use mixed SMT + DIP production lines. First, SMT machines mount the vast majority of small components, then a DIP section is set up on the same line for soldering the few components that must use through-hole technology (such as high-power components, large connectors, transformers, etc.).

• Specific Fields: Pure DIP factories mainly serve specific traditional fields that require extremely high mechanical reliability or do not need miniaturization.

Current main application areas include:

• Industrial Control Equipment

• High-Power Power Supplies

• Automotive Electronics (certain components)

• Aerospace and Military Equipment

• Certain Home Appliances (e.g., control boards for washing machines, air conditioners)

• Educational Development Boards and Laboratory Equipment

Summary

In simple terms, a DIP Factory represents an important stage in the development of electronics manufacturing. Although it has been surpassed by more advanced SMT technology, it still plays an irreplaceable role in specific fields and mixed production processes. When you hear this term, you can understand it as a manufacturing base that focuses on, or heavily uses, Through-Hole Technology and Wave Soldering.
